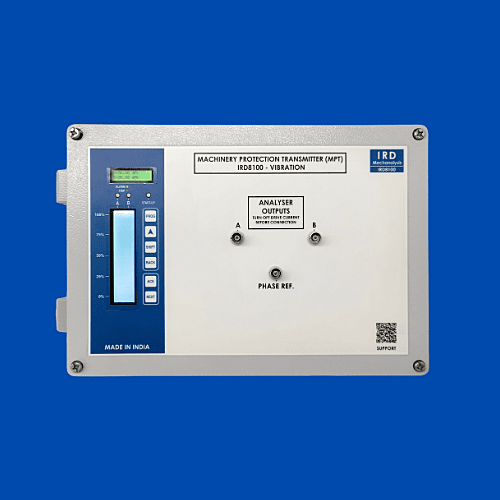

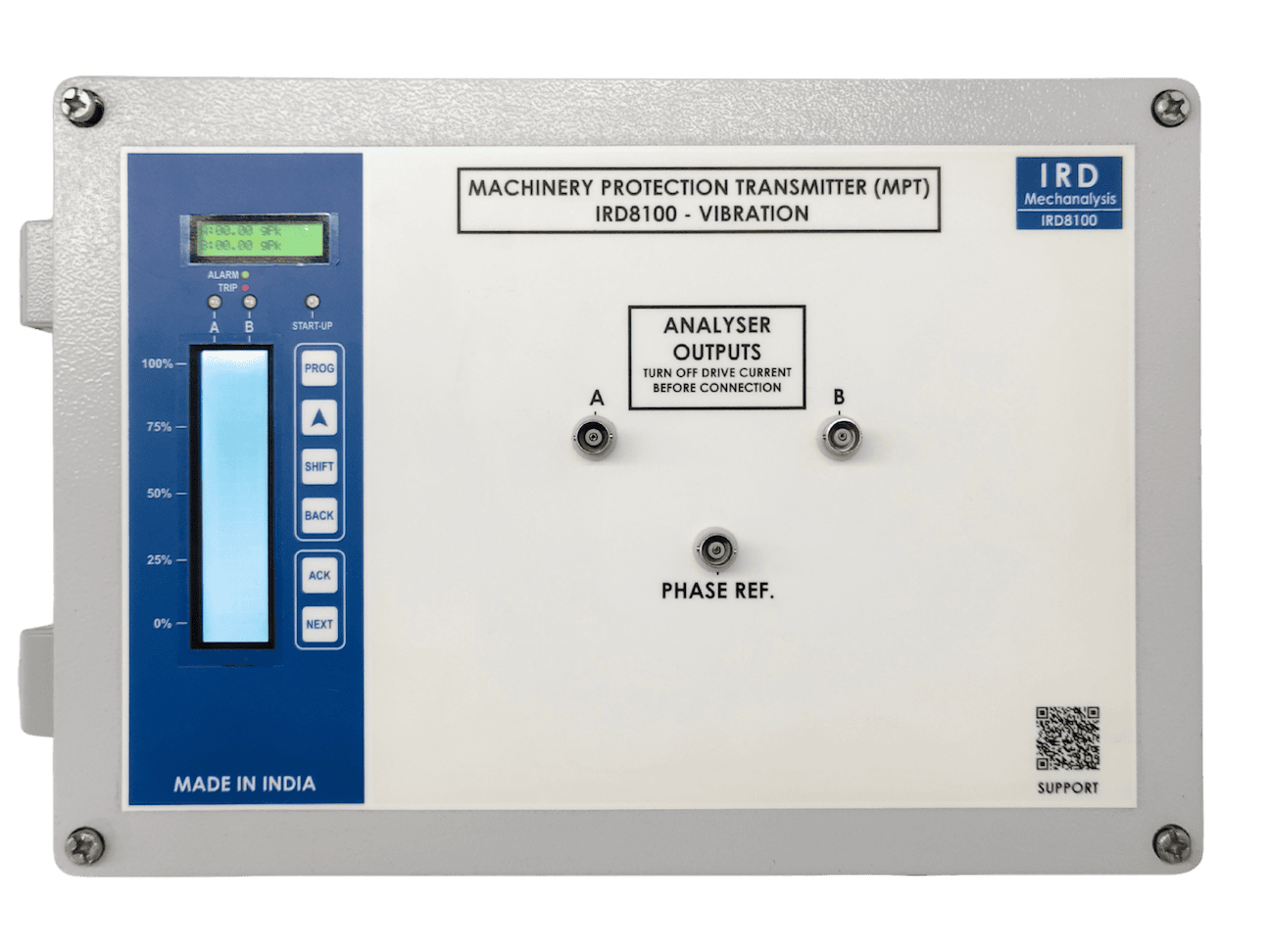

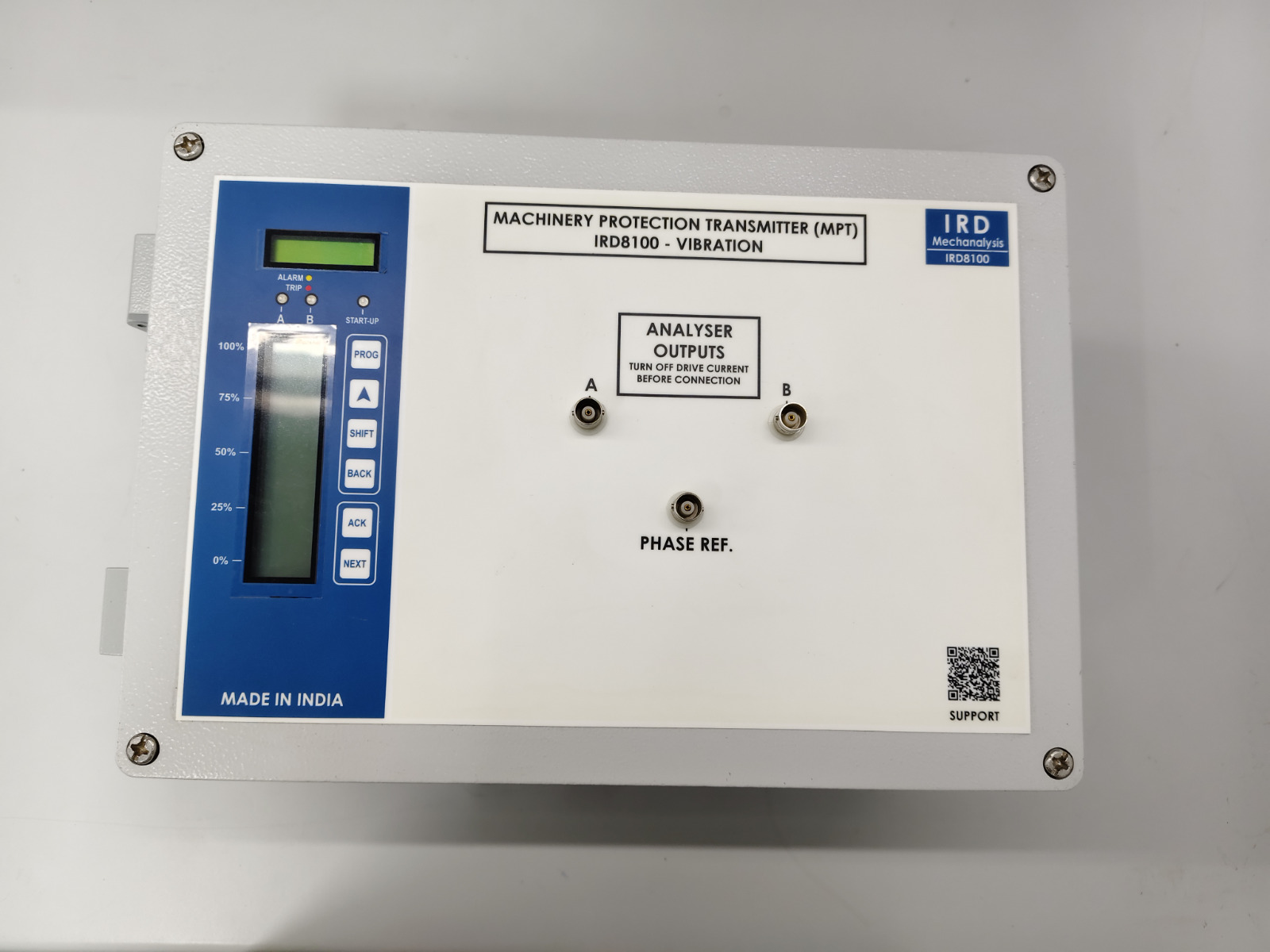

IRD8100 is a Wall Mountable Machinery Protection Transmitter (MPT) that can be ordered for Vibration, Temperature, Speed or Gap Monitoring. It is Designed, Manufactured and Produced by IRD Mechanalysis Limited in India. Irrespective of Parameter monitored - it boasts the following features:

• Wall-Mountable Enclosure 330 x 230 x 181 mm in Aluminium Die Cast RAL7035 Shade with Hinged Door
• Alphanumeric and Bargraph Display along with LED Lamps for Alarm/Trip/Startup Indication
• Password Protected Programming menu accessible via Keypad
• Industry Standard Outputs like 4-20 mA, MODBUS RTU/TCP, Alarm and Trip Relay Contacts per Channel
• When monitoring Vibration - Buffered Output via BNC and Phase reference output via BNC
